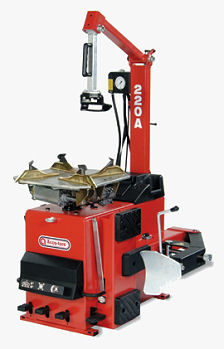

For full service custom motorcycle shops and automotive shops that service todays custom wheels. Articulating arm design with 21” outside clamping capability. Adjustable bead-breaker to accommodate up to 16” wide tires, plastic mount/demount head for extra wheel protection. Standard Safety Inflation System secures rim during inflation. Optional protective plastic jaw covers available, part # SM101402. Custom motorcycle shops will need optional clamp adapters for changing custom motorcycle wheels/tires part #SM102724.

This Tire Changer has been discontinued.
REPAIR and MAINTENANCE PARTS are still available.
Please contact us to order your parts.

Key features of the 220A tire changer:

• Motorcycle, passenger car and light truck tire applications
• Articulating arm design
• Telescoping bead-breaker
• Non-opposing Jaws
• Slotted mounted head for low profile tires
• Inside Clamping Range 12” - 23”
• Outside Clamping Range 10” - 21”
• Maximum Rim/Tire Width 12”
• Maximum Rim Width 13”
• Maximum Tire Diameter 46”
• Bead Breaker Capacity 16”
• Safety restraint inflation system
• Motor rating 1 H.P.
• Electric requirement 120volt 20amp
• Air Pressure 100 -170 lbs
• Heavy steel construction
• Industrial powder coat paint finish
• 5-year transmission warranty
• Width 30”
• Depth 44.5”
• Height 70”
• Shipping weight 451 lbs
